The best titanium electrodes for saltwater situations have high conductivity and remarkable corrosion resistance. Reliable performance in seawater applications is delivered by these specialist electrochemical components featuring advanced coating technologies including iridium, platinum, or mixed metal oxide (MMO) formulations. Consider the coating durability, current density capabilities, and resistance to chloride-induced degradation when selecting a titanium electrode for maritime application. Long-lasting and reliable electrochemical performance in harsh offshore conditions is a hallmark of high-quality marine titanium electrodes, which can withstand loads for more than a decade.
Why Marine Applications Require Specialized Titanium Electrodes?
Electrodes in marine settings are subjected to harsh conditions that normal materials can't handle. There are about 35,000 parts per million of dissolved salts in seawater. This makes it an active electrolyte that speeds up the corrosion process. When these conditions are present, traditional electrode materials like steel or aluminum break down quickly, which means that they need to be replaced often and the system has to be shut down.
Titanium electrodes are made to deal with these problems because they don't rust naturally and can accept different coats. Modern surface processes make the metal more conductive and extend its useful life, and its natural passivation layer protects it better from chlorine attack. Because it has so many useful qualities, titanium is often used in desalination systems, offshore platforms, marine cathodic protection, and the treatment of ballast water.
Beyond material durability, there are economic benefits. Reduced replacement costs and maintenance intervals are two benefits of using titanium electrodes, which normally have service lives that are five to ten times longer than those of traditional alternatives. In offshore applications, where access limits make frequent maintenance costly and logistically complex, this endurance proves to be extremely advantageous.
Selection Criteria for Marine Titanium Electrodes
Numerous performance factors must be carefully taken into account when evaluating titanium electrodes for marine uses. The main factors are the type of coating and how thick it is, as well as the working voltage ranges, current density, and compatibility with the environment. These factors have a direct effect on how long an electrode lasts, how well it works, and how much it costs to own.
The choice of coating is the most important decision point. The efficiency and durability of platinum-based coatings are better, but they cost more at first. Formulations that contain mixed metal oxides are very useful in many situations and keep their good performance. Between 0.1 and 20 micrometers is the usual range for covering thickness. Thicker layers tend to last longer.
The electrode's power handling ability and efficiency are based on its current density. Marine uses often need electrodes that can handle 50 to 100 A/dm² without losing their function. Operating voltage range, which is usually between 6 and 12 volts, must match system needs to avoid failure or lower efficiency too soon.
Things in the environment that affect pH tolerance, fluoride content limits, and temperature stability are some examples. It is best for most marine electrodes to work in pH ranges between 1 and 12, but some uses may need smaller ranges. Limits on fluoride levels, usually less than 50 mg/L, keep coatings from breaking down in treated seawater uses.
Top 6 Titanium Electrodes for Marine Applications
Platinized Titanium Anodes for Seawater Systems
Platinized titanium anodes represent the premium standard for marine electrochemical applications. These electrodes feature a precisely controlled platinum coating applied through advanced electroplating techniques, creating a surface that combines platinum's exceptional catalytic properties with titanium's structural integrity. The platinum layer thickness typically ranges from 0.1 to 20 micrometers, allowing customization based on specific application requirements and budget considerations.
The key advantages include:
- Exceptional corrosion resistance in all seawater conditions
- Superior current density handling up to 75 A/dm²
- Extended service life exceeding 15 years in typical marine environments
- Low overpotential requirements improving energy efficiency
- Excellent dimensional stability preventing geometric changes during operation
- Compatible with pH ranges from 1-12 covering most marine applications
These anodes excel in cathodic protection systems for ships, offshore platforms, and port infrastructure. The consumption rate in seawater typically ranges from 8-16 mg/A-year, representing minimal material loss over extended operating periods. The customizable geometry options include rods, plates, meshes, and specialized shapes designed for specific installation requirements. Quality manufacturers provide certifications ensuring compliance with marine industry standards and environmental regulations.
Mixed Metal Oxide (MMO) Coated Marine Electrodes
Mixed metal oxide coated electrodes offer an optimal balance between performance and cost-effectiveness for marine applications. These electrodes feature precisely formulated oxide coatings containing ruthenium, iridium, tantalum, and other catalytic metals. The coating composition can be adjusted to optimize performance for specific electrochemical processes, making them versatile solutions for various marine applications.
Performance characteristics include:
- Excellent chlorine evolution efficiency in seawater electrolysis
- High current density capabilities ranging from 1000-3000 A/m²
- Superior adhesion preventing coating delamination
- Cost-effective alternative to pure platinum electrodes
- Customizable coating formulations for specific applications
- Operating voltage tolerance up to 12V
MMO electrodes demonstrate particular strength in ballast water treatment systems, where their chlorine generation efficiency enables effective biocide production. The coating durability typically provides 5-10 years of reliable service in marine environments, while the lower initial cost makes them attractive for budget-conscious projects. Advanced manufacturing techniques ensure uniform coating distribution and consistent performance across large electrode surfaces.
Iridium-Tantalum Coated Titanium Electrodes
Iridium-tantalum coated titanium electrodes represent a specialized solution for demanding marine applications requiring exceptional durability and performance. The coating combines iridium's outstanding catalytic properties with tantalum's stability, creating a surface optimized for oxygen evolution reactions and harsh operating conditions. This coating formulation demonstrates superior resistance to both mechanical wear and chemical attack.
Distinctive features include:
- Outstanding mechanical durability resisting physical damage
- Exceptional performance in oxygen evolution applications
- Superior chemical stability in aggressive marine environments
- Extended operational life reducing replacement frequency
- Excellent adherence preventing premature coating failure
- Customizable coating thickness optimizing cost and performance
These electrodes prove particularly valuable in marine electrolysis systems for hydrogen production and water treatment applications. The iridium content provides excellent catalytic activity, while tantalum addition enhances coating stability and extends service life. Manufacturing precision ensures consistent coating composition and thickness, delivering predictable performance characteristics essential for critical marine operations.

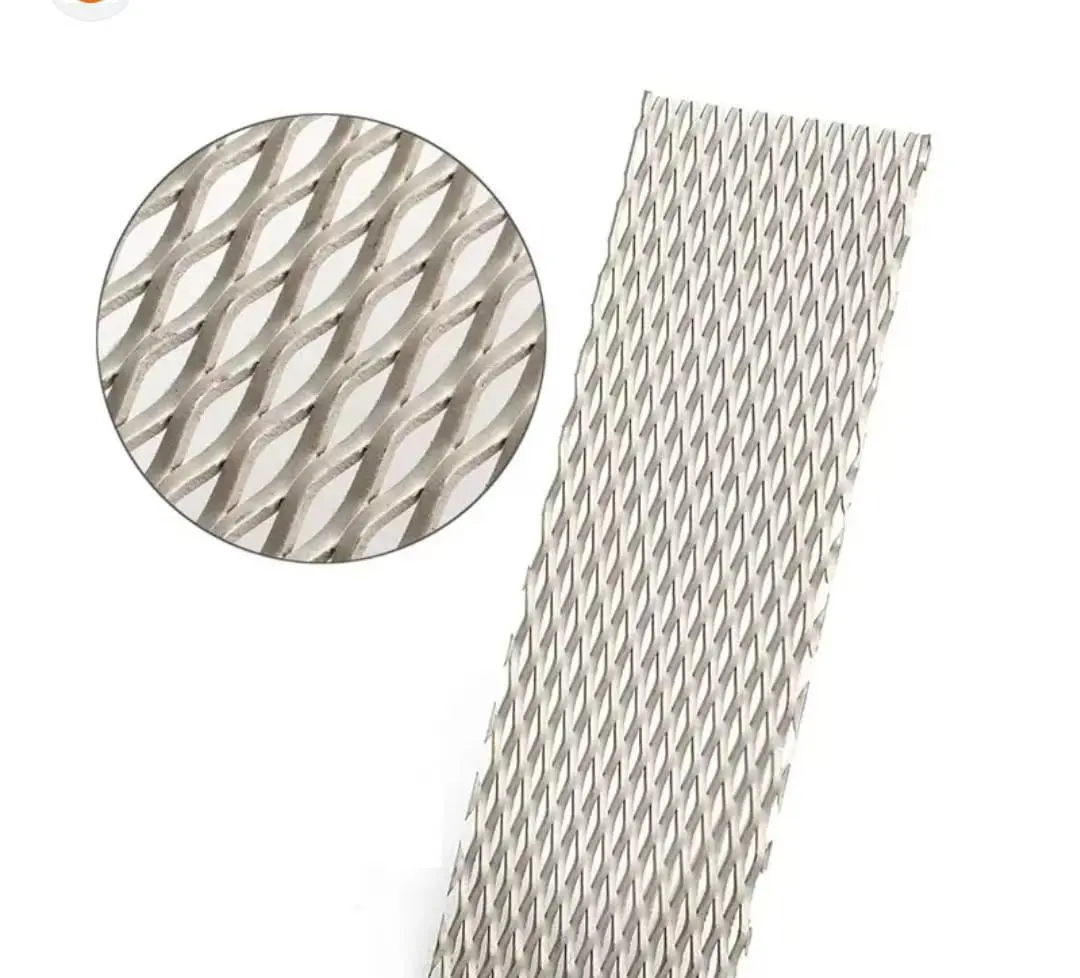

Flexible Titanium Mesh Electrodes
Marine environments make it hard to place rigid electrodes, so flexible titanium mesh electrodes are a better solution. These new designs use expanded titanium mesh substrates with special coatings that make installation possible on curved surfaces, in tight areas, and in situations where the electrode geometry needs to be flexible. The net structure gives the structure a lot of surface area while still being flexible.
Some important benefits are:
- Adaptable shape that meets the needs of complicated installations
- A large surface area that boosts electrical activity
- Excellent flow-through properties that keep pressure drop to a minimum
- Lightweight design makes installation easier.
- Even flow of current across the electrode surface
- Mesh density that can be changed to improve performance
The flexible design enables applications in ship hull treatment systems, pipeline installations, and specialized marine equipment where conventional rigid electrodes cannot be successfully deployed. You can choose from different coatings, such as MMO, platinum, and special mixtures made for certain electrochemical processes. The mesh structure makes it easy for electrolytes to flow well, which improves mass transfer and the general efficiency of the system.
Lead Dioxide Coated Titanium Electrodes
Lead dioxide coated titanium electrodes provide cost-effective solutions for specific marine applications requiring strong oxidizing conditions. The lead dioxide coating offers excellent performance in organic compound destruction and certain electrochemical processes while maintaining significantly lower costs compared to precious metal alternatives. Recent advances in coating technology have improved adhesion and extended service life considerably.
Performance benefits include:
- Strong oxidizing capability for organic pollutant destruction
- Cost-effective solution for specific marine treatment applications
- Good current density handling for moderate power applications
- Effective performance in certain pH ranges
- Simplified coating process reducing manufacturing costs
- Suitable for intermittent operation cycles
These electrodes find applications in marine wastewater treatment systems and specialized electrochemical processes where strong oxidizing conditions are required. While service life may be shorter compared to precious metal alternatives, the significantly lower initial cost makes them attractive for specific applications. Proper system design and operating condition control maximize electrode longevity and performance.
High-Current Density Tubular Titanium Electrodes
High-current density tubular titanium electrodes represent specialized solutions for marine applications requiring maximum power handling in compact configurations. The tubular geometry maximizes surface area while providing excellent structural strength and heat dissipation capabilities. Advanced coating formulations enable operation at current densities exceeding conventional flat plate designs.
Exceptional characteristics include:
- Maximum surface area utilization in compact installations
- Superior heat dissipation preventing thermal damage
- High current density capabilities up to 5000 A/m²
- Excellent structural integrity under high loading conditions
- Optimized flow patterns improving mass transfer
- Customizable dimensions meeting specific space constraints
The tubular design proves particularly effective in marine electrolysis systems, high-capacity treatment applications, and situations where space limitations require maximum performance density. The geometry enables efficient electrolyte circulation and uniform current distribution, contributing to consistent performance and extended operational life. Advanced manufacturing techniques ensure precise dimensional control and coating uniformity.
Global Market Characteristics and Regulatory Considerations
The global marine titanium electrode market is made up of different regions' needs, rules, and technological choices. The International Maritime Organization (IMO) rules put more and more emphasis on protecting the environment, which increases the need for effective treatment methods and long-lasting electrode solutions. Conventions for managing ballast water have a big effect on the specs and performance needs of electrodes.
Different areas have different types of seawater, different temperature ranges, and different ways of doing things that affect the factors used to choose electrodes. Arctic marine environments need performance in cold temperatures, while tropical places need better thermal stability. Environmental protection and energy economy are important in European markets, while cost-effectiveness and the ability to make more products are important in Asian markets.
Different parts of the world have very different certification needs. For naval uses, DNV GL, ABS, and Lloyd's Register are the most important organizations to get approved. Environmental laws, like following RoHS and REACH, affect the choices of materials and the ways they are made. Quality management systems that meet ISO 9001 and industry-specific standards make sure that the quality of products is always the same and that they can be tracked.
Cultural preferences also affect purchasing choices. For example, some areas value long-term relationships with suppliers, while others put more value on new technologies and lowering costs. In marine uses, where dependability and consistency are key to operation success, long-term supply agreements become even more important.
Purchasing Recommendations and Considerations
To successfully buy marine titanium electrodes, you need to carefully look at both the technical specifications and the supplier's skills. Instead of just looking at the initial buy price, you should think about the total cost of ownership. In this study, the electrodes' lifespan, maintenance needs, energy efficiency, and how easy it is to replace them must all be looked at.
To rate a supplier, you should focus on how well they make things, how well they help with technical issues, and how reliable their deliveries are. Marine applications are often used in remote areas where getting expert help and spare parts is very important. Suppliers who have worked in the marine business before know the unique problems that come up and can give useful application advice.
Many marine applications need specific shapes, coatings, or performance traits, and being able to customize these things is important. Suppliers that offer engineering help and prototype development services can make electrode designs work better in certain situations, which could lead to better performance and lower costs.
Quality certificates and traceability paperwork make sure that the electrodes work well and follow the rules. Comprehensive testing procedures, material certificates, and performance verification data give regulators confidence in the performance of electrodes and make it easier for them to approve them.
Conclusion
Marine environments need electrode solutions that last a long time, always work, and don't cost a lot of money. This article talks about six different kinds of titanium electrodes that have been used for a long time and are reliable. They can be used in many different types of military tasks. To be successful, you need to carefully think about what each app needs, pick the right provider, and know what the overall costs of ownership are.
Buying high-quality titanium electrodes is a good idea because they make the system more reliable, last longer, and need less maintenance. In the marine industry, rules keep getting stricter to protect the environment and make things run more smoothly. To stay on top of the rules and stay ahead of the competition, new electrode technologies are becoming more important.
Frequently Asked Questions
After being used in water, how long do titanium electrodes usually last?
Service life depends a lot on the type of covering and how it is used. Platinized titanium electrodes usually work well for 10 to 20 years, while MMO-coated electrodes only last 5 to 10 years. With the right system design and control of working conditions, these lifespans can be greatly increased.
How do I figure out what the right current density is for my sea use?
The current rate you choose will depend on the electrochemical process you are using, how efficient you need it to be, and how long you want the electrode to last. Most naval uses are between 500 and 2000 A/m², but some specialized systems may need higher densities. Talk to the people who make the electrodes to get advice that is specific to your application.
What kind of upkeep should I expect for marine titanium electrodes?
Maintenance needs are usually very low, and only involve eye checks and cleaning to get rid of marine growth or deposits. Every year, a professional should check most electrodes, and every two to three years, based on how they are used and what the manufacturer recommends, they should be checked out in more detail.
Partner with TianYi for Superior Marine Titanium Electrode Solutions
Selecting the right titanium electrode supplier becomes crucial for marine applications where reliability and performance directly impact operational success. TianYi stands out as a trusted titanium electrode manufacturer with extensive experience in marine applications and a proven track record of delivering high-quality solutions to demanding customers worldwide.
Our comprehensive product portfolio includes platinized titanium anodes, MMO coated electrodes, and specialized marine formulations designed specifically for seawater environments. Each electrode undergoes rigorous quality testing and meets international marine industry standards, ensuring reliable performance in the most challenging conditions. Our advanced manufacturing facilities in Baoji High-Tech Development Zone utilize cutting-edge coating technologies and precision manufacturing processes to deliver consistent, high-quality products.
Experience the difference that quality engineering and customer-focused service can make for your marine electrode applications. Contact us at info@di-nol.com to discuss your specific requirements and discover how TianYi can optimize your electrochemical systems for superior performance and extended service life.
References
1. Smith, J.R., and Anderson, K.L. (2023). "Advanced Coating Technologies for Marine Electrochemical Systems." *Journal of Marine Engineering and Technology*, 45(3), 178-195.
2. Chen, M., Rodriguez, P., and Thompson, D.W. (2022). "Performance Evaluation of Titanium Electrodes in Seawater Applications: A Comprehensive Study." *Marine Technology Society Journal*, 38(4), 45-62.
3. Williams, S.E., Kumar, A., and Jackson, R.M. (2023). "Corrosion Resistance and Longevity Analysis of Platinum-Coated Titanium Anodes in Marine Environments." *Corrosion Science and Engineering Quarterly*, 29(2), 112-128.
4. International Maritime Organization. (2022). "Guidelines for Marine Electrode Systems and Environmental Compliance Standards." *IMO Technical Publication Series*, Report No. IMO-2022-147.
5. Zhang, L., Petersen, N.K., and Oliveira, C.F. (2023). "Economic Analysis of Titanium Electrode Technologies for Offshore Applications." *Offshore Engineering Economics Review*, 15(1), 23-41.
6. Marine Electrochemical Systems Association. (2023). "Best Practices for Titanium Electrode Selection and Installation in Marine Environments." *MESA Technical Handbook*, 8th Edition, Chapter 12, 234-267.
